Watchguard 2020 Wireless IR Multi-Beam Sensor

Brand logo
SKU ALC-BEAM1
Brand logo

Watchguard 2020 Wireless IR Multi-Beam Sensor

SKU ALC-BEAM1

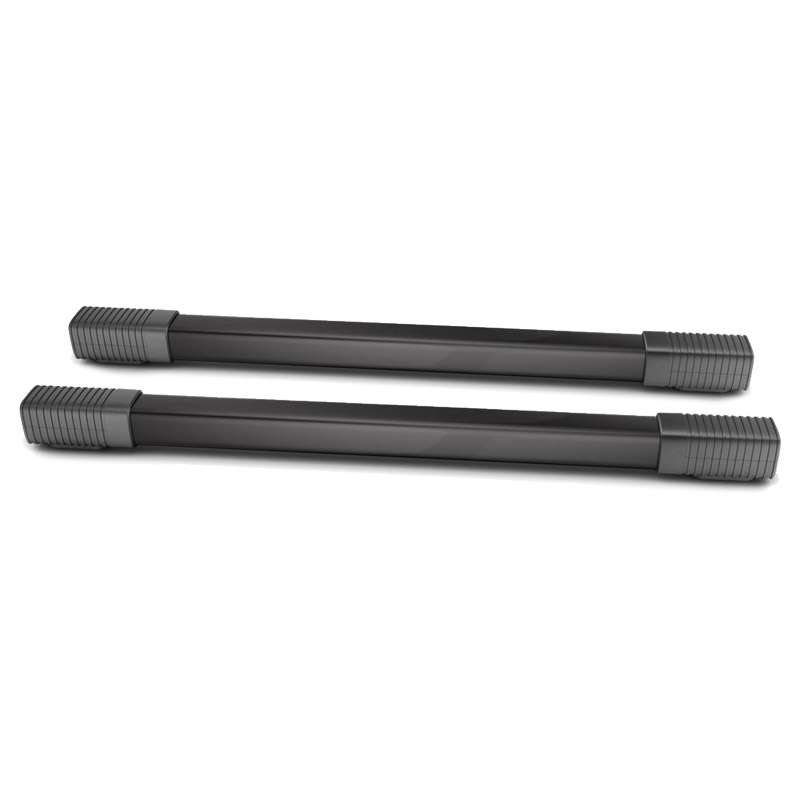

The Watchguard 2020™ ALC-BEAM1 wireless infrared multi-beam sensor detects intrusion by creating a curtain of 4 x invisible infrared beams. It is ideal for use indoors or outdoors, on fences, balconies, garage doors and more.

Product features:
• Maximum detection range up to 6m
• Wireless frequency: 433.92MHz (±75KHz)
• Wireless transmission distance to WG2020 alarm up to 80m
• IP66 weather resistant & UV-resistant polycarbonate body for outdoor use
• Completely wireless: Battery standby life up to 3 years
• 2 x CR123A (transmitter), 3 x CR123A (receiver)
• Compact housing at 47mm x 47mm x 612mm

Suggested Products

Suggested product image
Watchguard 2020 Wireless 3G SMS Alarm Pack
ALC-PACK1
Suggested product image
Watchguard 2020 Wireless WiFi Alarm Pack
ALC-PACK2

Links and Downloads

Watchguard ALC Series accessories Datasheet (PDF) 1.33 MB
ALC-BEAM1 Quick Start Guide (PDF) 1.02 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Detector Infrared Beam
4 beams
Radio frequency
315MHz or 433MHz
Alarm Detection Range
Up to 6m
Standby time
3 years
Standby mode Power Consumption
Beam transmitter < 0.03mA, beam receiver <0.11mA
Alarm mode Power Consumption
0.04mA
Environmental
Beam Receiver Battery
2 x CR123A batteries
Beam Transmitter Battery
3 x CR123A batteries
Ingress Protection
N/A
Vandal Resistance
IP66
Housing
Polycarbonate (anti UV) and ABS Plastic
Dimensions
42 x 47 x 612mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
110 mm
Height
670 mm
Depth
55 mm
Weight
1.20 kg
