Professional Series 13.56MHz Card Reader

Brand logo
SKU ACRDR-2LKC2
Brand logo

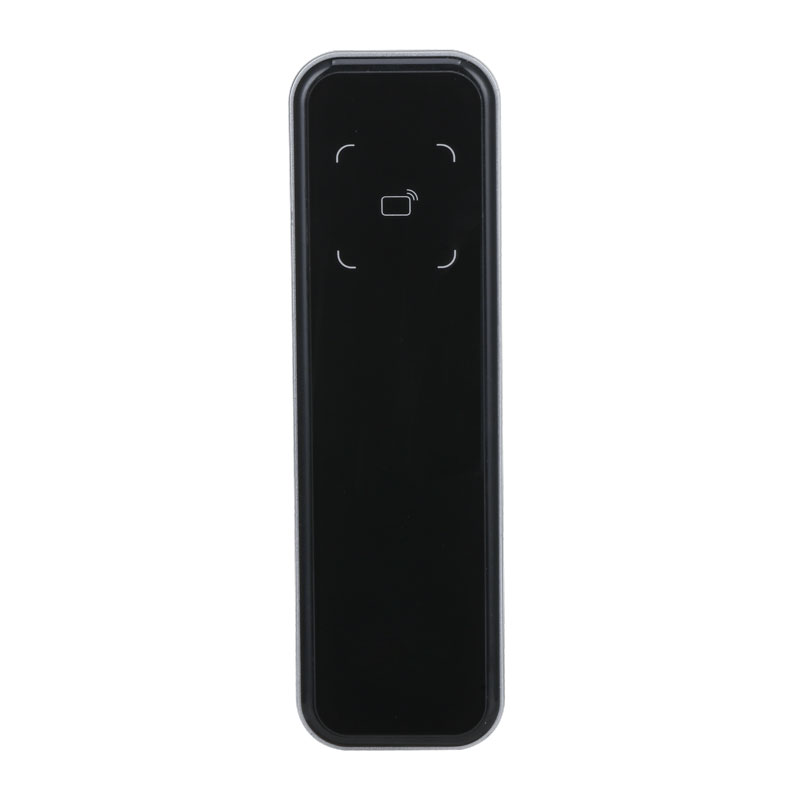

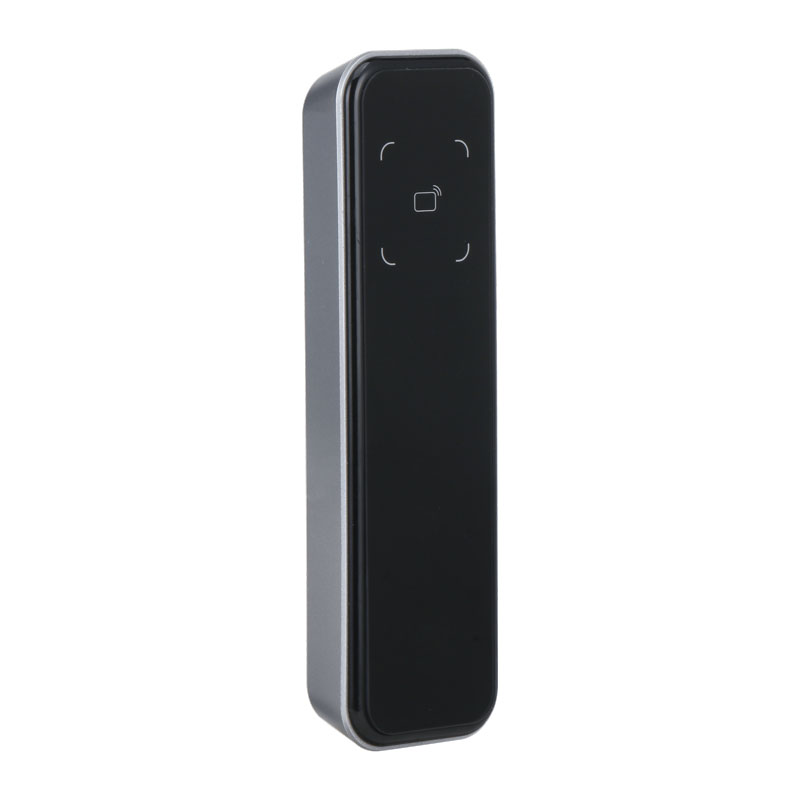

Professional Series 13.56MHz Card Reader

SKU ACRDR-2LKC2

The ACRDR-2LKC2 is a professional access control reader, capable of granting access via RFID.

Product features:
• Compatible with 13.56MHz access control systems
• Gain access via RFID card
• Use with Door Access Control series for multiple units
• Connect and configure with PC via ethernet cable
• RS485 protocol
• Elegant, glossy black finish for professional appearance
• Tamper switch triggers loud alarm, deterring removal
• Blue backlight for low light visibility

Links and Downloads

VIP Vision ACRDR Series Datasheet.pdf 0.69 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Product
RFID Reader
Main Processor
8 Bit
Communication
RS485 / Wiegand
Access
RFID Format
13.56MHz
RFID Read Range
≤8cm
RFID Read Time
<0.1s
Fingerprint Scan
N/A
Keypad
N/A
Function
Audio
Buzzer
Light
Blue Backlight
Tamper Switch
Yes
Environment
Ingress Protection
IP66
Vandal Protection
N/A
Power Supply
5~15 VDC / 100mA
Operating Conditions
-30°~+70° C / Less than 95% RH

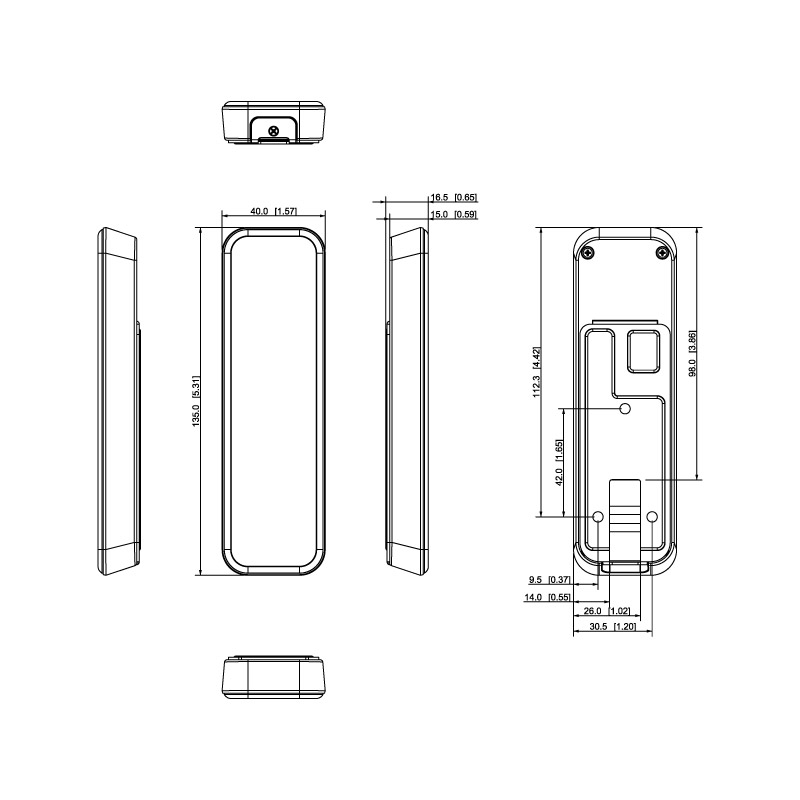

Dimensions
135 x 40 x 15mm
Net Weight
0.16kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
75 mm
Height
52 mm
Depth
195 mm
Weight
0.16 kg
