Monitored Multi-Voltage Mortise Electric Door Strike

Brand logo
SKU ACLOC105
Brand logo

Monitored Multi-Voltage Mortise Electric Door Strike

SKU ACLOC105

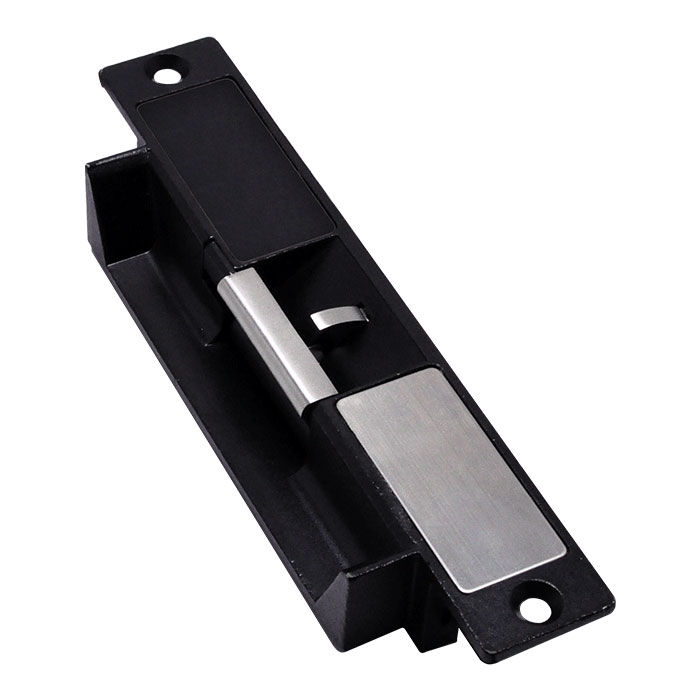

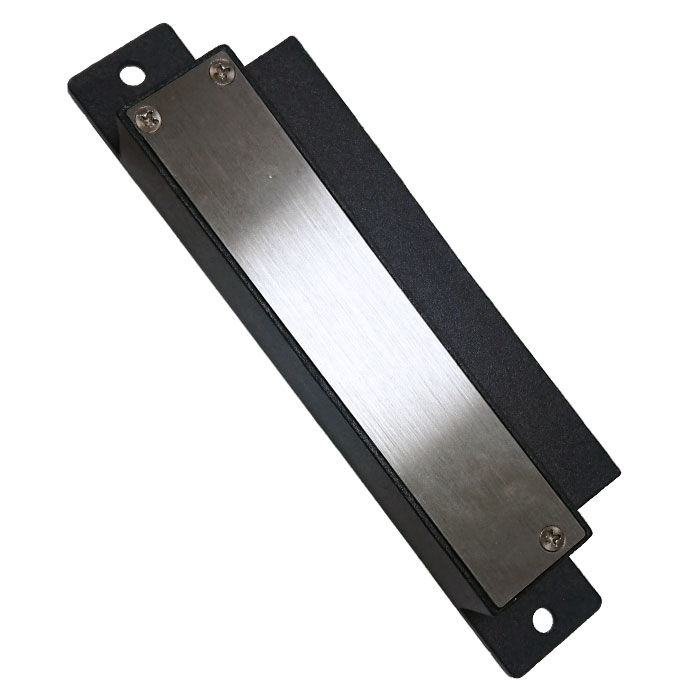

The Watchguard ACLOC105 is a strong, mortise mount, electric door strike for use with access control systems. It features a durable stainless steel faceplate, door-latch and lock sensors for remote monitoring of lock status, and comes standard with mounting screws and voltage spike suppressing varistors. The ACLOC105 is easily convertible between fail-safe and fail-secure modes (default: fail-secure), and it can be powered via 12V/24V AC/DC as per site requirements.

*For indoor use only.

Product features:
• Mortise mounted
• Stainless steel faceplate
• Door Sensor
• Lock Sensor
• Keeper Sensor
• Built for new or existing installs - 12VDC/24VAC switchable

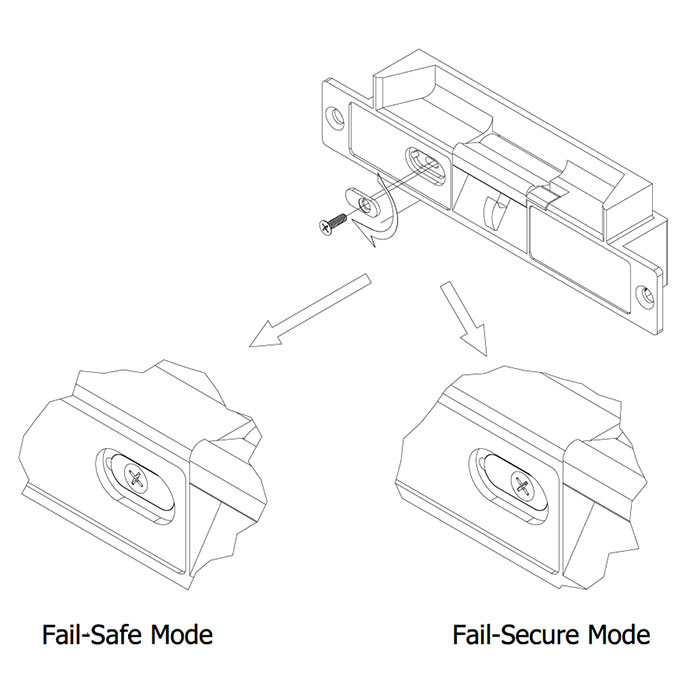

• Switchable between fail-secure & fail-safe

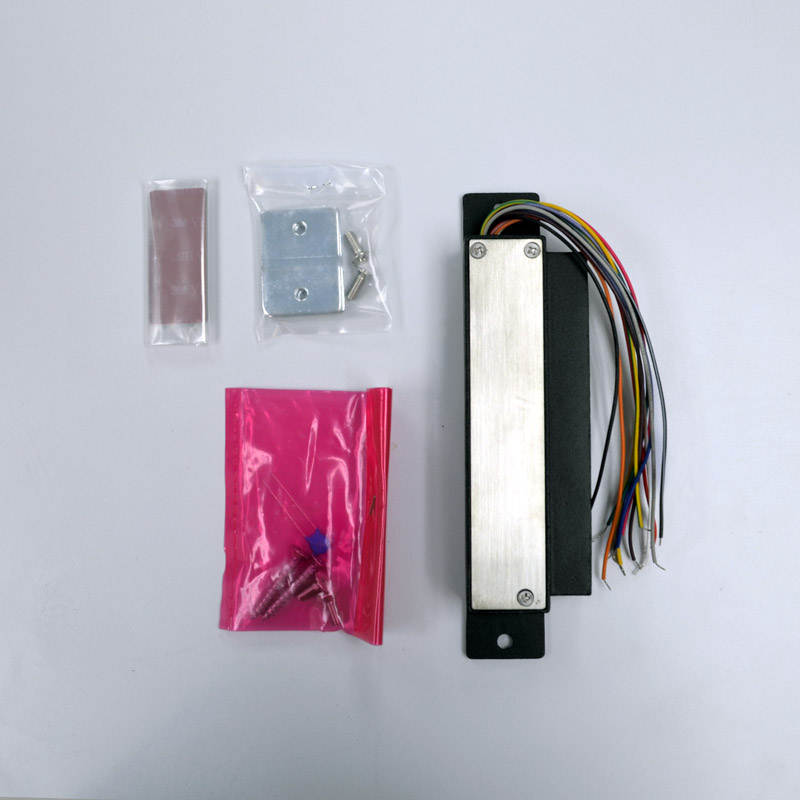

Includes:
1 x Door strike
2 x Strike plates
6 x Screws
2 x Varistors
1 x Installation manual
1 x Mounting template

Links and Downloads

VIP Vision Access Control Accessories Datasheet (PDF) 0.50 MB
ACLOC105 User Manual (PDF) 0.12 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Mortise Mount
Door Latch
12.7mm
Keeper Depth
10.8 mm
Construction
Stainless steel
Lock Configuration
Fail secure / Fail Safe (switchable)
Lock Status Sensor
Yes
Environmental
Power input
12/24VDC at 280/140mA / 12/24VAC at 170/85mA

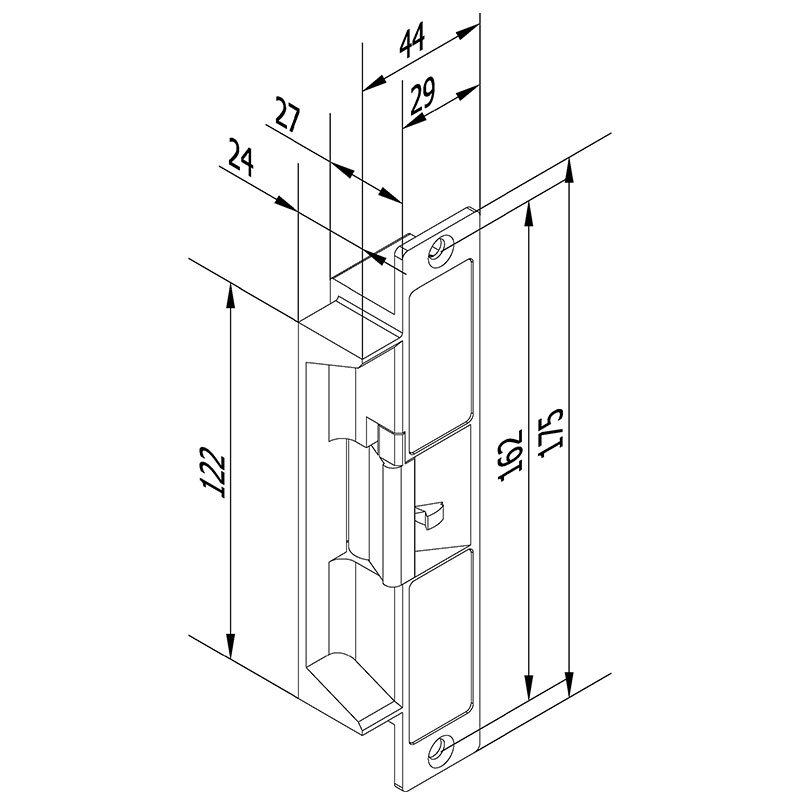

Faceplate Dimensions
175 x 29 x 3mm
Overall Dimensions
175 x 29 x 27mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
60 mm
Height
225 mm
Depth
55 mm
Weight
0.62 kg
