Professional Series 4 Door Two-Way Access Controller

Brand logo
SKU ACCON-2P42
Brand logo

Professional Series 4 Door Two-Way Access Controller

SKU ACCON-2P42

VIP Vision Access Controllers are the central management device for your system. Take full control with user management, event logs, access period scheduling, alarm functions, CCTV integration and much more.

Product features:
• Store up to 100,000 valid cards & 150,000 records
• Supports RFID card, password, fingerprint and keycode
• TCP/IP interface for configuration via PC
• Wiegand or RS-485 interface to readers
• Door time-out, intrusion, duress and tamper alarms
• Anti-passback, multi-door interlock, multi-card open
• Support 128 efficient time and holiday schedules
• Watch dog function ensure device free from halting

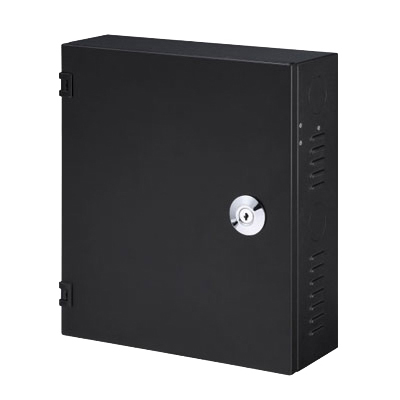

• Sturdy wall-mounted metal casing
• Backup battery support, battery connector included
*12V 7Ah backup battery recommended (Sold separately)

Manage with SmartPSS (minimum spec Windows 7, 2.4GHz or higher, GPU with DX8.0c support, 1GB RAM, 1024x768 resolution)

* Please note that backup battery up-time uses 12VDC7Ah Lead Acid Battery. Figures are calculated estimates for reference only. Actual installation results may vary

* This controller and supported readers are compatible with 13.56MHz NFC cards only.

Suggested Products

Suggested product image
Mortise Electric Door Strike
ACLOC100
Suggested product image
Monitored Multi-Voltage Mortise Electric Door Strike
ACLOC103
Suggested product image
Chrome Surface Mount Electric Door Strike
ACLOC104
Suggested product image
Professional Series 13.56MHz Card Reader / Touch Keypad
ACRDR-2LKC
Suggested product image
Professional Series 13.56MHz Card Reader / Metal Keypad
ACRDR-2MKC
Suggested product image
Professional Series Compact 13.56MHz Card Reader
ACRDR-2PC
Suggested product image
Professional Series Slim 13.56MHz Card Reader
ACRDR-2SC
Suggested product image
Professional Series 13.56MHz Card / Fingerprint Reader
ACRDR-2SFC
Suggested product image
Professional Series Slim 13.56MHz Card Reader / Touch Keypad
ACRDR-2SKC

Links and Downloads

ACCON-2P22 / ACCON-2P41 / ACCON-2P42 / ACCON-2C41 Datasheet (PDF) 4.08 MB
VIP Vision Access Control User Manual vQ121 (PDF) 4.12 MB
SmartPSS for Access Control (Windows 2.002 2019-02-25) 127.24 MB
ConfigTool for Intercom, CCTV & Access Control (Windows 2020-10-22) 32.00 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

System
Input Ports
20 (4 x lock state ; 4 x door sensor; 4 x exit button; 8 x alarm)
Output Ports
12 (4 x door lock; 4 x internal alarm; 4 x external alarm)
Main Processor
32 Bit
Memory
16MB
Reader Ports
8
Card Memory
100,000
Event Memory
150,000
Function
Access Control
Anti-pass back, Multi-interlock, Multi-card unlock
User Management
General, VIP, Guest, Patrol, Blacklist, Duress
Alarm Function
Door time-out, Intrusion, Tamper, Duress
Period
Support 128 groups of schedules, 128 groups of periods and 128 groups of holiday periods
Network
Ethernet
RJ-45 (10/100Base-T)
Reader Interface
Wiegand / RS485
Environmental
RTC
Yes
Battery Backup
12VDC 7Ah Battery / UPS (Sold Separately)
Battery Up-time
Electric Door Strikes: 20hrs (2 doors) / 11hrs (4 doors) / 6hrs (8 doors)
Power Supply
240V AC
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Housing
Metal
Dimensions
270 x 330 x 90mm
Net Weight
2kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
350 mm
Height
470 mm
Depth
165 mm
Weight
3.66 kg
